• A reed valve (also called a leaf valve) is a one-way check valve that permits flow (usually of an air‑fuel mixture) in one direction but prevents backflow.

• In 2‑stroke engines, it is commonly placed between the carburetor (or intake manifold) and the crankcase, allowing the fuel/air mixture to enter the crankcase under vacuum and then preventing it from going backward when pressure rises. Motorcycle Specs+2compotec.pl+2

---

🏗 Reed Valve in Jetsurf / Jetboard Engines

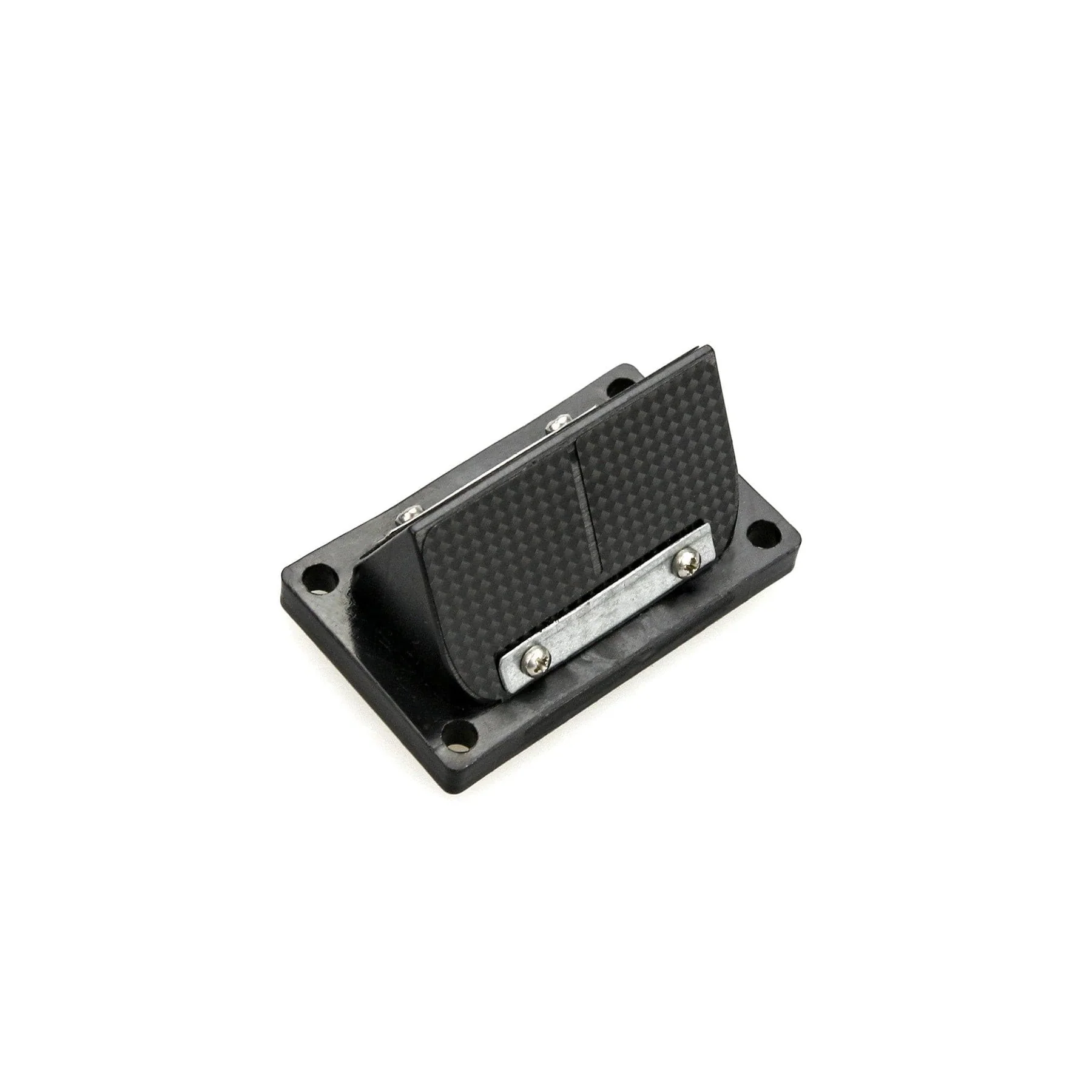

For Jetsurf boards, the reed valve used is Item A000097 — the “Reed‑Ventil / Reed Valve” in their parts catalog.

• It uses carbon fiber / composite reed petals (thin flexible “petals” or “blades”).

• It is used in many of their combustion engine models across years: e.g. UltraSport 2016–2018, GP 2016–2018, Adventure DFI in later years, etc.

• The reed valve is located between the carburetion (or intake) and the crankcase.

If that makes sense, here are its functions, failure modes, inspection tips, and replacement advice.

---

⚙ How It Works

1. Intake / Vacuum Stroke

   • When the piston moves upwards, it creates a partial vacuum in the crankcase.

   • That vacuum causes the reed petals to flex open, allowing the air/fuel mixture to be drawn in from the carburetor/intake side into the crankcase.

2. Compression / Pressure Stroke

   • When the piston moves down, pressure builds in the crankcase.

   • The reed petals close (press against their seat), sealing off the intake so that the mixture is forced via the transfer ports into the combustion chamber, and preventing backflow.

Thus, it ensures that the mixture only flows into the engine, not backward, improving volumetric efficiency and preventing reversals.

---

🔎 Typical Problems / Failures

• Petal wear or cracking: Over time the carbon or composite reed petals degrade, may crack, chip, or delaminate from the mounting.

• Gap between petal and body / seat: If the petal doesn’t seal completely (due to warping, wear, or damage), it allows leakage, leading to poor running, weak compression, or spitting back through carburetor.

• Loose mounting or gasket failures: Where the reed valve is clamped or sealed, any leak there affects its performance.

• Fatigue / vibration: The reeds oscillate at high frequency in operation; they may fatigue and eventually fail under continuous vibration.

• Improperly seated or misaligned petals: If the petals don’t lie flush, you get leaks or rough performance.

As one user of a Jetsurf wrote:

“If you find a gap in plate and body it must be replaced… these plates vibrate with the rpms … they tend to be a high wearing part.”

---

✅ Inspection Tips & Replacement Advice

• Hold to light test: Remove the reed valve and hold it to a light source; if light seeps through gaps between petals and their seat, it’s a sign of sealing failure.Visual inspection: Look for cracks, chips, frayed edges, or delamination in the reed petals and the supporting structure.

• Check flatness: Ensure the reed cage/seating surface is flat and not warped.

• Check sealing surface: Clean, and if necessary lap the petal edge lightly on very fine stone or glass (manufacturer guidelines permitting) to improve seal.

• Replace when damage is visible or performance is degraded: Because the reed valve is critical to intake efficiency, even small damage can lead to noticeable performance drop.

When replacing:

• Use the exact part (for Jetsurf, A000097) to ensure proper fit and material.

• Ensure the gasket or seal between the reed valve body and mounting surface is in good condition (the engine gasket kit includes reed valve gaskets).

• Torque or clamp fasteners to correct specification to avoid distortion.

---

If you like, I can get you the technical specifications (dimensions, material thickness, mounting layout) for the Jetsurf A000097 reed valve so you can verify whether a replacement you have is correct.
